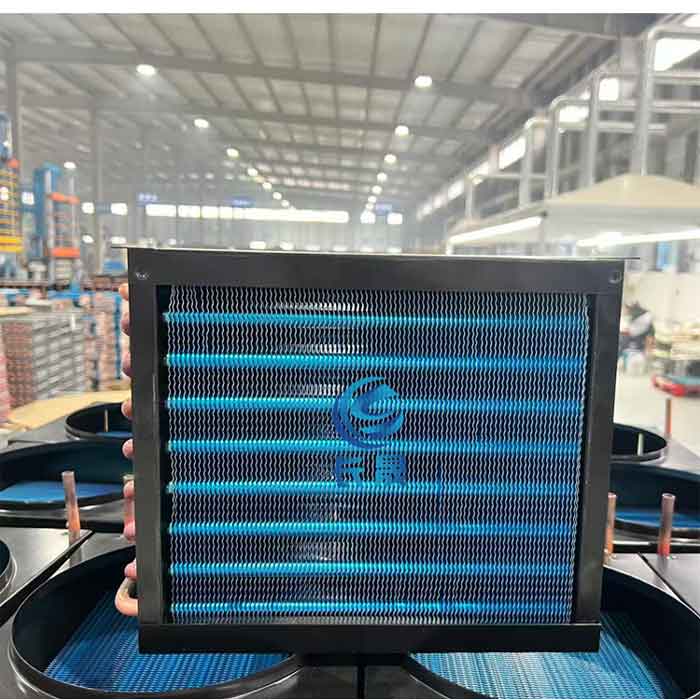

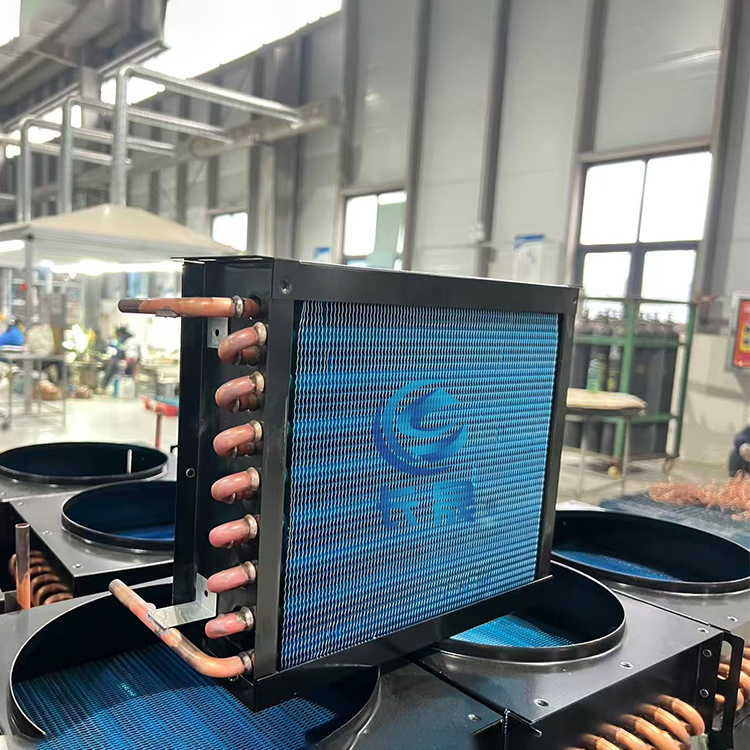

Copper tube aluminum fin condenser: a core component of commercial display case refrigeration systems.

Copper tube aluminum fin condenser is a high-efficiency heat exchange equipment, belonging to the gas-liquid or gas-gas condenser type. Its core structure consists of the following two parts:
1. Copper tube: As a circulation pipe for heat transfer media (such as refrigerants), copper becomes the core heat transfer material due to its high thermal conductivity (thermal conductivity coefficient is about 400 W/m·K) and corrosion resistance.

2. Aluminum fins: Tightly wrapped around the outer wall of the copper tube through mechanical expansion or welding process to form a dense fin array. Aluminum significantly increases the heat dissipation surface area and improves the overall heat exchange efficiency due to its light weight (density is only 30% of copper) and low cost.

Function: In the refrigeration/heat pump system, the high-temperature and high-pressure gaseous refrigerant is condensed into liquid through heat exchange with the ambient air, releasing latent heat (such as the condensation latent heat of R410A refrigerant is about 200-250 kJ/kg), completing the key link of the refrigeration cycle

3. Structure and materials – Base tube: Usually a copper tube with a diameter of Φ5~15.88mm and a wall thickness of 0.28~0.6mm. Some of them adopt an internal fin design to enhance the heat transfer in the tube. – Fin: The thickness of the aluminum foil is 0.12mm, and a corrugated or serrated surface is formed by stamping to optimize the airflow disturbance. – Connection process: The copper elbow and the piping adopt a Φ7~8mm specification to ensure the sealing and pressure bearing capacity (such as the pressure test up to 30MPa).

4. Manufacturing process – Surface treatment: The copper tube is dipped in varnish or electrophoretic paint, and the aluminum fin is anodized to improve corrosion resistance. – Internal cleanliness: High temperature vacuum drying process ensures that the refrigerant flow path is free of impurities and passes leak detection.

Our Custom Design Process Based on Drawings:

Drawings and Requirements Reception

We accept your complete technical drawings (2D/3D), technical specifications, and material requirements.

Clearly define the application scenario, performance parameters (such as heat exchange, air resistance, operating pressure), and acceptance criteria.

Professional Review and Technical Collaboration

Our engineering team will conduct a manufacturability analysis of the drawings and provide professional advice on process details, material optimization, and potential risks to ensure the perfect implementation of the design.

Confirm all technical details and form a mutually agreed manufacturing specification.

Flexible Production and Precision Manufacturing

Utilizing advanced CNC equipment, precise tube expansion processes, and rigorous welding techniques, we ensure that every product is identical to your drawings.

We strictly control the source of raw materials such as copper tubes and aluminum fins to ensure that materials meet requirements.

Full-Process Quality Verification

From first-piece inspection to process inspection, and finally to the final product, we implement multiple quality checkpoints.

We can provide key data such as pressure tests, airtightness tests, and dimensional inspection reports to ensure product reliability.

On-time Delivery and Continuous Support

Optimize production planning to ensure on-time delivery.

Provide comprehensive product packaging, logistics, and after-sales technical support, becoming your stable supply chain backbone.
