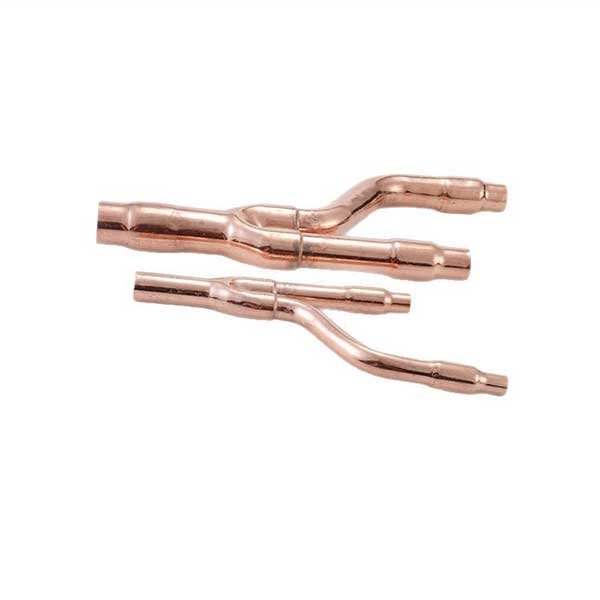

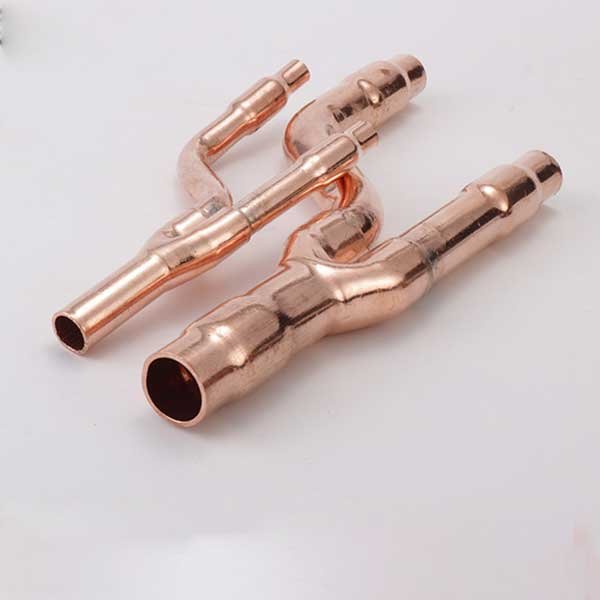

Copper Y Fittings
Copper Y Fittings are made of high-quality C12200 deoxidized copper and are formed by precision casting. They are designed for liquid/gas diversion systems. The product complies with ASTM B75 standards and has a 45° oblique diversion structure, which can effectively reduce fluid resistance and is suitable for pipeline systems with working pressure ≤1.6MPa.
Products Description
Product Overview
Copper Y Fittings are made of high-quality C12200 deoxidized copper and are formed by precision casting. They are designed for liquid/gas diversion systems. The product complies with ASTM B75 standards and has a 45° oblique diversion structure, which can effectively reduce fluid resistance and is suitable for pipeline systems with working pressure ≤1.6MPa.
Core advantages
Fluid optimization design: Y-shaped branch structure reduces turbulence, and the pressure loss is 35% lower than that of traditional T-shaped tee
Corrosion resistance: inner wall tinning treatment (optional), passed 72-hour salt spray test
Quick installation: socket welding/threaded connection (NPT/BSPT) dual interface selection
Temperature adaptability: -20℃~150℃ stable operation, thermal expansion coefficient 0.000017/℃

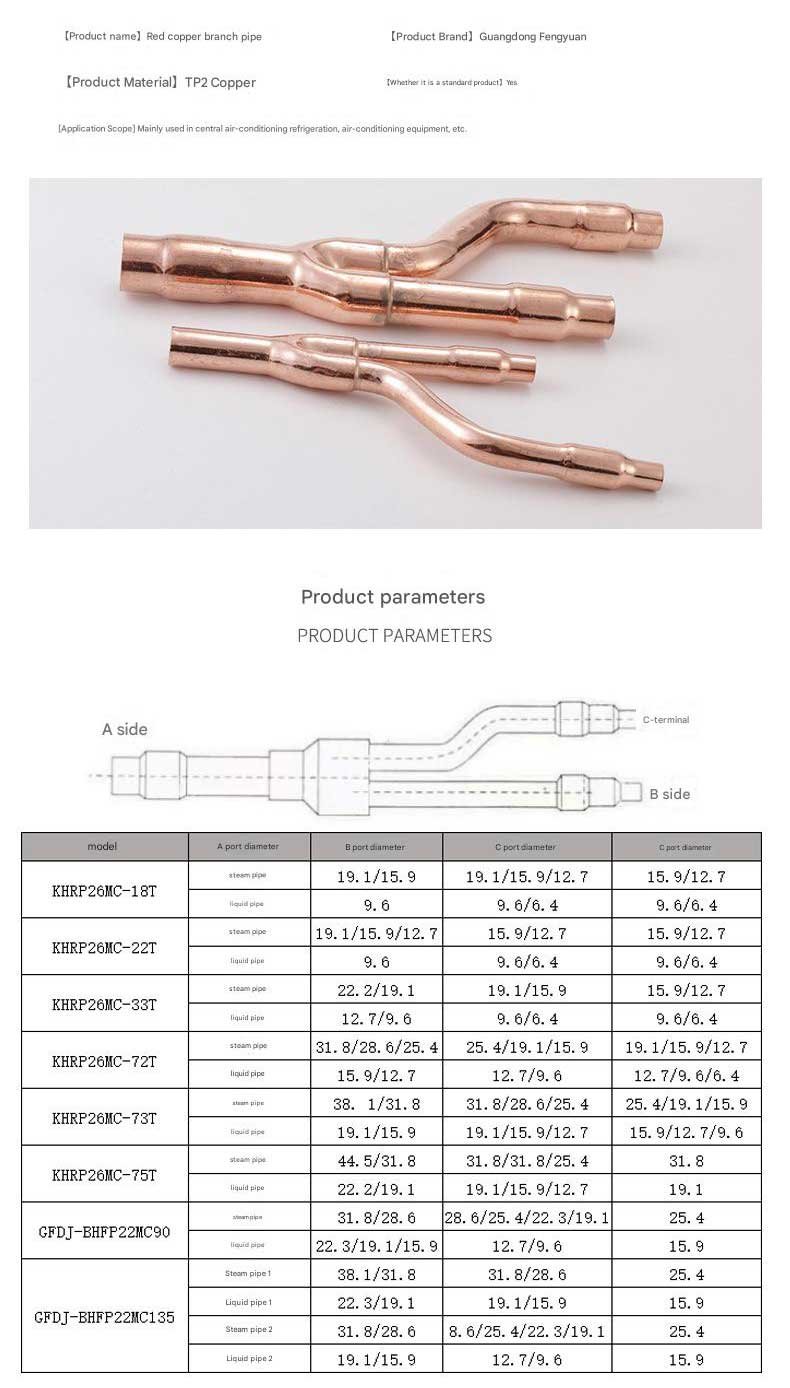

Technical parameters
Specifications Outer diameter (mm) Wall thickness (mm) Test pressure 1/2″ 15.8 1.2 2.4 MPa 3/4″ 22.2 1.5 2.2 MPa 1″ 28.6 1.8 2.0 MPa
Application scenarios
Central air conditioning chilled water circulation system
Solar water heater diversion device
Industrial gas transmission pipeline
Medical gas engineering (medical grade copper materials are required
