Copper tube finned condensers for commercial/industrial/cold chain applications | Custom designs based on provided drawings | Free selection support

• Parameter Item	Standard Specification (Customizable)
  Copper Tube Material	T2 High Purity Copper
  Fin Material	Hydrophilic Blue Film Aluminum Foil
  Frame Material	Galvanized Steel / Stainless Steel
  Copper Tube Diameter	5mm – 12.7mm (Customizable)
  Fin Pitch	1.5mm – 4mm (Customizable)
  Working Pressure	1.6MPa – 3.0MPa (Customizable)
  Applicable Refrigerants	R134a, R410a, R22, CO₂, etc.
  Customization Scope	Size, Rows, Circuits, Fittings
  Operating Temp Range	-40℃ ~ +80℃

High-Efficiency Copper Tube Fin Condenser/Evaporator for Refrigeration & HVAC
Our copper tube aluminum fin condenser is a core heat exchange component for refrigeration systems, featuring high thermal conductivity, corrosion resistance, and customizable design. With premium T2 copper tubes and hydrophilic blue aluminum fins, it delivers excellent heat transfer efficiency, low air resistance, and long service life. Ideal for air conditioners, refrigerators, cold rooms, HVAC systems, and industrial chillers. We support full customization of size, coil circuit, and interface to meet your specific project needs. CE certified, strict quality testing, and global shipping available.

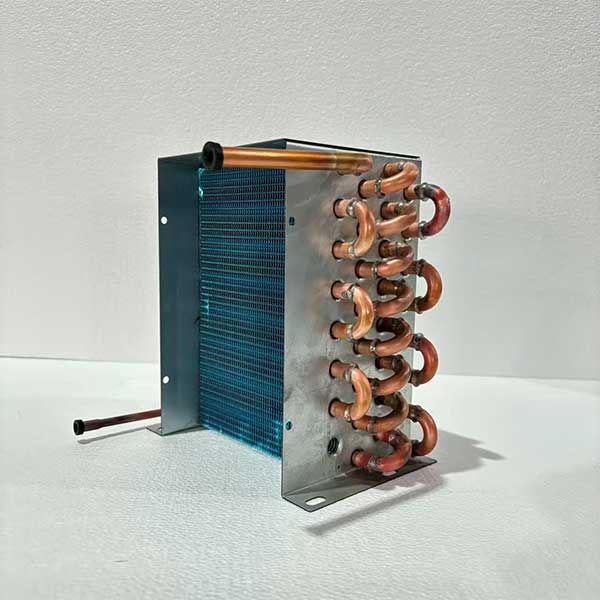

Core structure disassembly

• Heat Exchange Copper Tubes: Made of high-purity copper (T2 copper), possessing excellent thermal conductivity, corrosion resistance, and weldability. Connected in series via U-shaped elbows to form a refrigerant flow loop, ensuring efficient heat exchange. Tube diameter, number of rows, and number of loops can be customized according to cooling capacity.

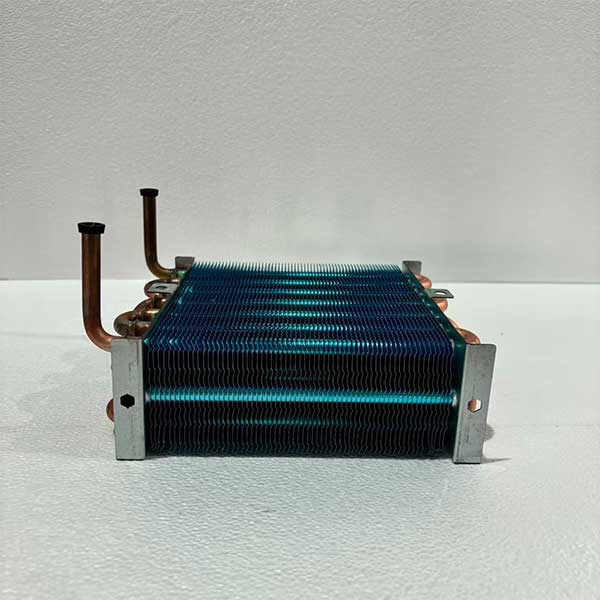

• Aluminum Fins: Utilizing hydrophilic blue aluminum foil (blue fins in the image), these fins are mechanically expanded to ensure a tight fit with the copper tubes, maximizing heat transfer efficiency. The fin design increases the air-side heat exchange area, improving air-cooled heat exchange efficiency. The hydrophilic coating prevents frost formation, reduces condensation residue, and avoids increased air resistance.
• Fixing Frame: Galvanized steel/stainless steel brackets for securing the coils and ensuring structural strength. Pre-drilled mounting holes accommodate various refrigeration equipment installation requirements.

Interface Design: Copper tube inlet and outlet interfaces feature dustproof protective caps (black end caps in the image), adaptable to different refrigerant piping specifications.
Customizable interface sizes and orientations are supported.

Core Product Advantages

1. Performance Advantages
Ultra-High Heat Exchange Efficiency:** The golden combination of copper and aluminum fins, coupled with a tight tube expansion process, results in extremely low thermal resistance and heat exchange efficiency far exceeding that of ordinary heat exchange components. This significantly improves the coefficient of performance (COP) of refrigeration/heating systems, reducing energy consumption.

Customizable Adaptability:** Customizable copper tube rows, loop count, fin spacing, overall dimensions, and interface specifications are available to meet diverse customer needs, adapting to small refrigeration equipment, commercial freezers, air conditioners, dehumidifiers, cold chain equipment, and more.

Weather and Corrosion Resistance:** The blue-film hydrophilic aluminum foil possesses excellent corrosion and frost resistance, while the copper tubes have strong oxidation resistance, making them suitable for complex operating conditions such as high temperature and high humidity, and ensuring a long service life.

Low Air Resistance Design:** Optimized fin arrangement and spacing design ensures sufficient heat exchange area while reducing airflow resistance, minimizing fan energy consumption, and resulting in quieter operation.

2. Technological and Quality Advantages

Mature Technology: Utilizing fully automated tube expansion and welding processes, the copper tubes and fins achieve 100% fit, eliminating incomplete or missed welds and ensuring the refrigerant circuit’s airtightness, thus preventing leakage risks.

Strict Quality Control: Each product undergoes airtightness testing, pressure resistance testing, and heat exchange performance testing, meeting international refrigeration industry standards (such as AHRI and CE certification requirements) and adapting to the quality requirements of global customers.

Miniature Design: The image shows a compact mini model with a small footprint, suitable for small refrigeration equipment and embedded systems. Customization for large-size commercial models is also supported.

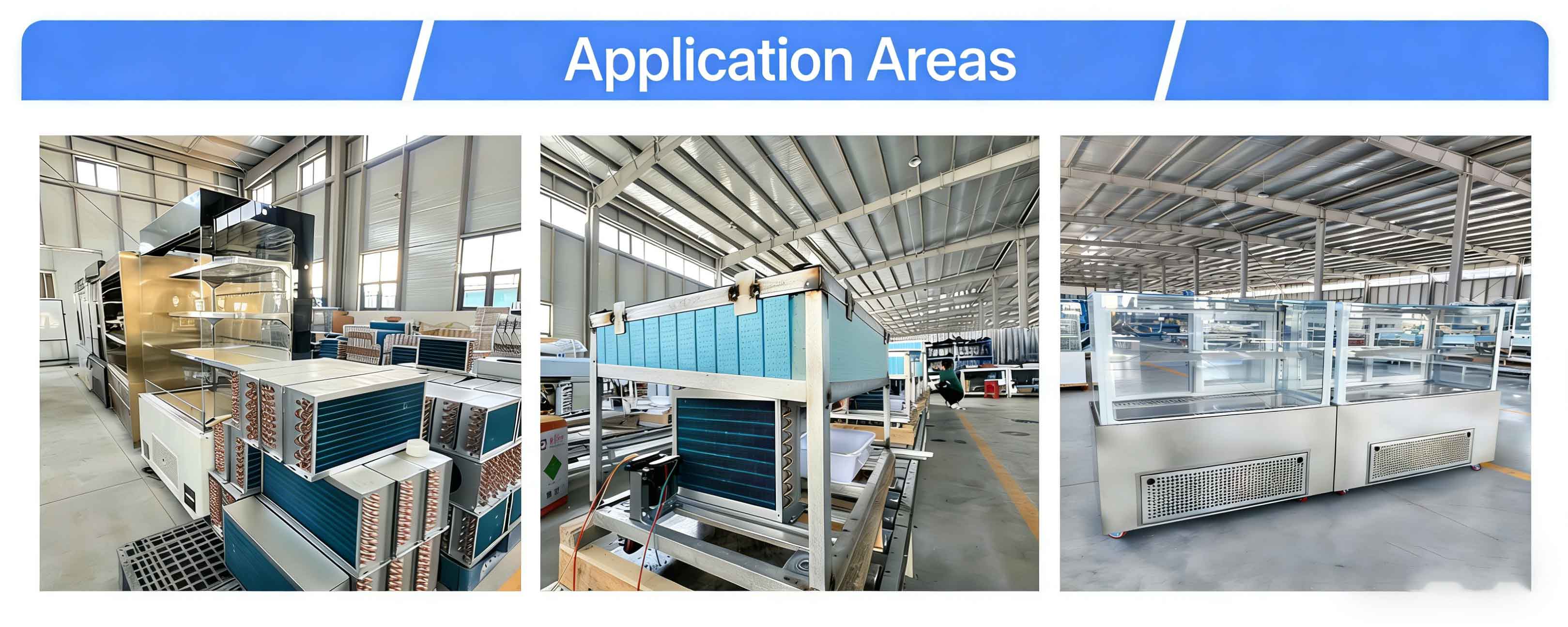

Core Application Scenarios

Refrigeration Appliances: Core heat exchange components for residential/commercial air conditioners, freezers, refrigerators, wine cabinets, dehumidifiers, and water dispensers.
Cold Chain Logistics: Air-cooled condensers/evaporators for refrigerated trucks, cold storage facilities, display cases, and cold chain cabinets.
Industrial Refrigeration: Chillers, heat pumps, industrial air conditioners, refrigeration units, and HVAC systems.
Special Equipment: Medical refrigeration equipment, laboratory temperature control equipment, new energy temperature control equipment, and special air conditioning units.

With stable quality, on-time delivery and professional after-sales service, we have long-term supplied reliable heat exchange solutions for global customers in refrigeration, HVAC, cold chain and industrial temperature control fields.
